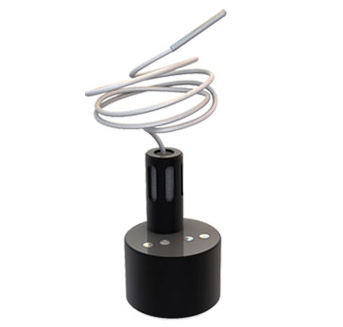

GMPF RH
GMPF RH
$0.00
具有灵活的温度传感器和刚性湿度传感器标准数据记录器. 易于编程和安装, 在验证过程中没有数据丢失, 多个用户可以同时共享同一个数据库. 在用户现场的远程工厂校准.
| Sensor element | Capacitive 4 wires PT-100 |
|
|---|---|---|
| – flexible | – 480毫米 (19″) PTFE/SS | |
| – customized | – up to 5000mm (195″) | |
| Operating Range | 0 到 100% RH non condensing -40 ℃至 100 °C |
|
| Accuracy | ±2.0% RH, 0% 到 100% non condensing at 20 ℃至 45 °C ±0.1 °C from -40 ℃至 100 °C |
|
| Memory capacity | 16,000 data points humidity / 16,000 data points temperature | |
| Sampling rate | 1 sec to 24 小时 | |
| Internal clock drift | 4 sec / 24 h @ 23 ° | |
| Mechanical | ||
| – material | Peek 1000 – FDA compliant | |
| – enclosure | IP-51 & IP-68 | |
| – weight | 43g (1.52 oz) | |
| – diameter | 40 毫米 (1.57″) | |
| – height | 60 毫米 (2.36″) | |
| Power | 1 Lithium battery 0.35 g Lithium content Classified UN3091 under IATA DGR section 3.9.2.6 Compliant with ICAO/IATA packing instructions 970 User replaceable |
|
| Battery lifetime | Up to 6 months, based on usage | |
| Docking station | USB connection 4, 8, 12 和 20 ports available programs and reads unlimited numbers of loggers |
|
| Calibrations | Factory: 用户: |
Traceable NIST/COFRAC – ITS-90 coefficients stored in the internal memory close loop calibration, using XpertLog® software |
| Certification | FMC: Health Safety: |
EN 60601-1-2 / 2007 EN 60950-1 / 2006 |
GMPF RH is suitable for a wide range of applications as follow:
- Ovens
- Autoclaves
- Stability Chambers
- 冰柜
- Steam In Place
- Cold Rooms
- Refrigerators
- Sterilization Tunnels
- Warehouses
- Incubators
- Lyophilizers
Optional Accessories:
- Pliers (Tools to open loggers for battery replacement.)
- Bracket (Mounting bracket for standard and RF data loggers)
- Shelf Mapping Cap (Temperature transfer adapter from the shelf to the logger’s sensor during freeze dryers mappings)
- GMP Pipe (Adapter for fixing data logger’s sensor inside pipes)
- Docking Station (Docking station for GMP and GDP data loggers)
